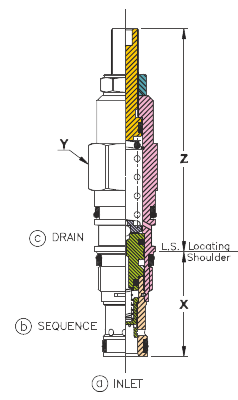

Pilot Operated, Balanced Piston SSV3
General Description
- Maximum operating pressure = 5000 psi
- Maximum leakage = SSV3 - 6: 32.8 cc/min./1000 psi, SSV3 - 12: 49.2 cc/min./1000 psi,
SSV3 - 24: 65.5 cc/min./1000 psi , SSV3 - 48: 81.9 cc/min./1000 psi.
- Typical response time 10 ms
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi.
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain),
rises above the valve setting.
- SSV3 - 3 minimum setting is 72 psi for all spring ranges.
- Adjustment Range = 'DR' & 'YL' are standard set at 1000 psi.
