Screw-In-Cartridge Valves - Pilot Operated Check Cartridge Valves

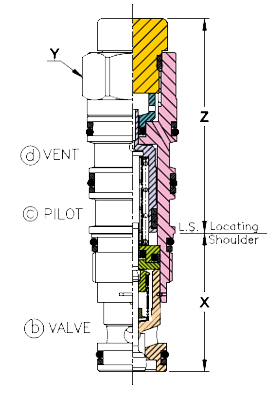

Vented, 4 Port Cavity SPCV2

General Description

1. Maximum operating pressure = 5000 psi
2. Maximum valve leakage = 0.07 cc/min.
3. Port 4 (vent) should never be blocked as seal weepage will eventually cause valve to malfunction.
4. Will accept pressure at port 4 (vent) but cannot exceed 5000 psi.
