Industrial Hydraulic - Modular Valves

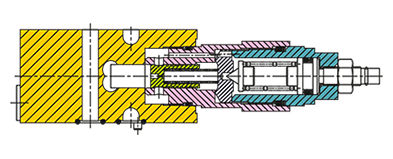

Relief Valves MV1-3 & MV2- DRF-3
General Description
These two-stage adjustable Pressure Relief Valves limit the maximum pressure in the line(s) controlled by the Integral Relief Valve elements.
Pressure adjustment options of control Screw / locknut design are available. The two-stage operation is basically identical to longestablished Balanced Piston Valves.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 315 bar (4500 psi) |
| Rated Capacity (maximum) | 60 L/min |
| Pressure Range | |
| C | 44 - 725 psi |
| HI | 44 - 1450 psi |
| HC | 145 - 2900 psi |
| YO | 725 - 4350 psi |
