Screw-In-Cartridge Valves - Sequence Cartridge Valves

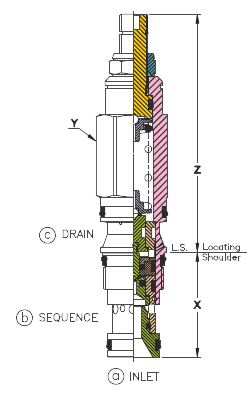

Direct Acting Without Reverse Flow Check SSV2

General Description

1. Maximum operating pressure = 5000 psi
2. Maximum valve leakage at reseat = 0.7 cc/min
3. Typical response time 10 ms
4. Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi
5. Reseat exceeds 85% of cracking pressure
6. Adjustment Range = 'RH' & 'YO' are standard set at 1000 psi
