Industrial Hydraulic - Check Valves

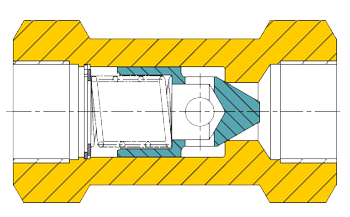

In Line Type Check Valves CV3
General Description
For use in fluid power system using petroleum of fire resistant fluids. Rated capacity based on using hydraulic oil having a viscosity rating of 150 S.S.U. at 38 degrees C.
Cracking pressure indicates pressure required to open valve and allow free flow.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 210 bar (3000 psi) |
| Rated Capacity | |
| CV3 - 3/8 | 30 L/min |
| CV3 - 3/4 | 76 L/min |
| CV3 - 1-1/4 | 190 L/min |
| Cracking Pressure | |
| Y | 5 psi |
| HO | 30 psi |
| HA | 65 psi |
