Industrial Hydraulic - Pressure Control Valves

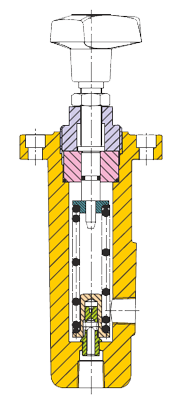

Pressure Relief Valves PCV1
General Description
General Usage is in applications requiring an adjustable Pressure Relief Valve or Pressure Regulating Valve of small capacity and direct action spring loaded type. Also in application as a Remote Control Valve for pilot operation of Microtact Balanced Piston Type Relief Valves.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 210 bar (3000psi) |
| Back Pressure | 100 psi |
| Rated Capacity (maximum) | 11.5 L/min |
| Approx. Weights | |
| PCV1 | 1.8 kg. |
