Industrial Hydraulic - Modular Valves

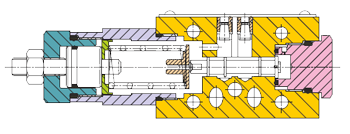

Pressure Reducing Valves MV8-3
General Description
MV8-3 Modular Pressure Control Valves are designed as self operated spool-type pressure control units. Rising system pressure acts against the spring to close the flow path. The leakage oil is internally drained to the tank line. Pressure setting is adjustable by means of a screw with securing lock nut. Different spring ratings cover an overall pressure range from 3.5 to 250 bar (50-3600 psi).
Note: These valves drain to the tank line. Any pressure in the line to which they are drained is additive to the valve pressure setting.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 250 bar (3600 psi) |
| Rated Capacity (maximum) | 40 L/min |
| Pressure Range | |
| HR | 50 - 425 psi |
| DY | 225 - 1000 psi |
| DD | 225 - 2000 psi |
| DR | 225 - 3600 psi |
