Industrial Hydraulic - Flow Control Valves

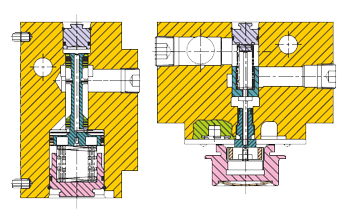

Flow Control Valves FC3
General Description
These valves provide precise adjustable control of flow rates in Hydraulic circuits. They are pressure and temperature compensated to minimize flow variation due to changes in fluid pressure and temperature, they can be used in meter-in, meter-out and bleed off circuits.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 210 bar (3000 psi) |
| Nominal Reverse Free Flow Pressure Drop | 65 psi |
| Rated Capacity (maximum) | 106 L/min |
| Nominal Valve Size | |
| 03 | 3/8” |
