Industrial Hydraulic - Pressure Control Valves

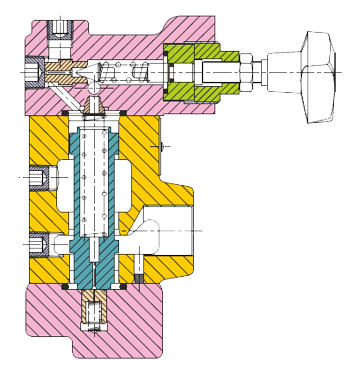

Pressure Reducing Valves PCV9
General Description
Operation is such that reduced outlet pressure is maintained constant regardless of variation of inlet pressure above the selected pressure setting.
A differential of at least 150 psi between inlet and outlet pressure must be maintained for proper functioning.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 210 bar (3000 psi) |
| Rated Capacity (maximum) | |
| PCV9-06 | 75 L/min |
| PCV9-10 | 189 L/min |
| Pressure Range | |
| YR | 100 - 2850 psi |
| Nominal Valve Size | |
| 06 | 3/4” pipe |
| 10 | 1-1/4” pipe |
