Industrial Hydraulic - Modular Valves
Pressure Reducing Valves MV10-3
General Description

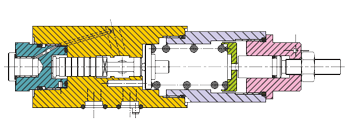

These single-stage valves operate by the application of pressure on the end of the valve spool, acting against a spring which is loaded by means of the adjustment mechanism.
The flow path is normally open and is closed as the pilot pressure exceeds the setting of the valve. Excessive pressure in the reducedpressure line is prevented by a pressure relieving function.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 315 bar (4500 psi) |
| Rated Capacity (maximum) | 60 L/min |
| Pressure Range | |
| HR | 44 - 435 psi |
| YD | 52 - 1015 psi |
| HC | 145 - 2030 psi |
| DR | 290 - 3625 psi |
