Industrial Hydraulic - Pressure Control Valves

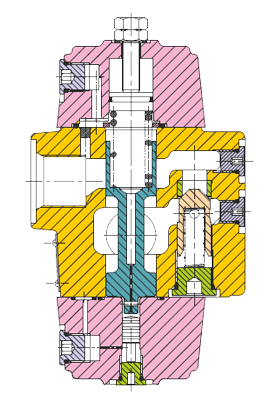

Pressure Control Valves PCV6
General Description
Microtact “hydrocushion” type pressure control valves are used to control the sequencing, unloading, back pressure, and counterbalancing of oil flow in hydraulic systems. Control is initiated by a pressure rise which can be sensed either internally (directly) or remotely. Models are available with or without integral reverse free flow checks.
| Basic Characteristics | |
|---|---|
| Ratings - Rate Pressure (maximum) | 210 bar (3000 psi) |
| Rated Capacity (maximum) | |
| PCV6-03 | 45 L/min |
| PCV6-06 | 114 L/min |
| PCV6-10/12 | 284 L/min |
| Pressure Range | |
| D | 10 - 30 psi |
| U | 30 - 60 psi |
| I | 60 - 125 psi |
| YY | 80 - 250 psi |
| YC | 125 - 500 psi |
| DA | 250 - 1000 psi |
| Nominal Valve Size | |
| 03 | 3/8” Pipe or 0.7500"-16UNF-2B |
| 06 | 3/4” Pipe or 1.0625"-12UN-2B |
| 10 | 1-1/4” Pipe or 1.6250"-12UN-2B |
| 12 | 1-1/2” Pipe or 1.8750"-12UN-2B |
