Industrial Hydraulic - Directional Control Valves

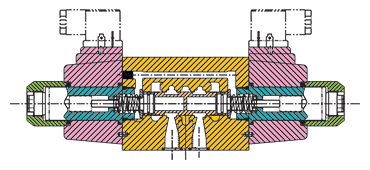

Solenoid Operated Directional Control Valves DCV1-5
General Description
A range of four-port solenoid operated directional control valves with four-land spool design to facilitate provision of smooth, variable valve response speeds.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 315 bar (4500 psi) |
| Ports P, A & B | Ports P, A & B |
| Ports Ta & Tb | 120 Bar (1700 psi) AC Sol 160 Bar (2300 psi) DC Sol |
| Rated Capacity (maximum) | |
| DCV1-5-20 | 120 L/min. |
| Spool Type | |
| 0 | open center (all port) |
| 2 | close center (all port) |
| 6 | close center (P only) |
