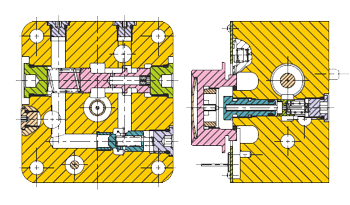

Flow Control Valves FC2
General Description
These valves provide precise adjustable control of flow rates in Hydraulic circuits. They are pressure and temperature compensated to minimize flow variation due to changes in fluid pressure and temperature, they can be used in meter-in, meter-out and bleed off circuits.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 250 bar (3500 psi) |
| Minimum Pressure differential between inlet & outlet parts | |
| FC2 - 02 - G - 25 | 150 psi |
| FC2 - 02 - G - 5 | 100 psi |
| Rated Capacity (maximum) | |
| FC2 - 02 - G - 25 | 25 L/min |
| FC2 - 02 - G - 5 | 5 L/min |
| Nominal Valve Size | |
| 02 | 1/4” NPT |
