Industrial Hydraulic - Pressure Control Valves

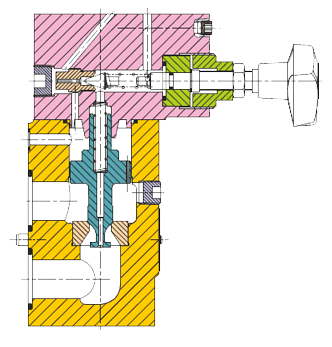

Solenoid Control Pilot Operated Relief Valves PCV11
General Description
All valves are of Microtact Balanced Piston Type construction. These valves are generally used for applications requiring a electricity controlled adjustable Pressure Relief or Regulating Valve to limit the pressure in an oil circuit to the desired maximum.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 210 bar (3000 psi) |
| Rated Capacity (maximum) | |
| PCV11-06 | 95 L/min |
| PCV11-10 | 245 L/min |
| Pressure Range | |
| YD | 125 - 1000 psi |
| DI | 500 - 2000 psi |
| RD | 1500 - 3000 psi |
| Nominal Valve Size | |
| 06 | 3/4” Pipe or 1.0625 SAE ST-THD |
| 10 | 1-1/4” Pipe or 1.6250 SAE ST-THD |
