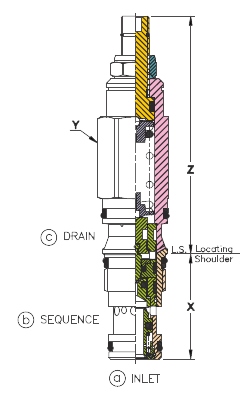

Screw-In-Cartridge Valves - Sequence Cartridge Valves

Direct Acting With Reverse Flow Check SSV1

General Description

1. Maximum operating pressure = 5000 psi
2. Maximum valve leakage at reseat = 0.7 cc/min
3. Free flow check cracking pressure = 40 psi
4. Typical response time 2 ms
5. Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi
6. Reseat exceeds 85% of cracking pressure
7. Adjustment Range = 'RH' & 'YO' are standard set at 1000 psi
