Solenoid Control Pilot Operated Relief Valves PCV12

General Description

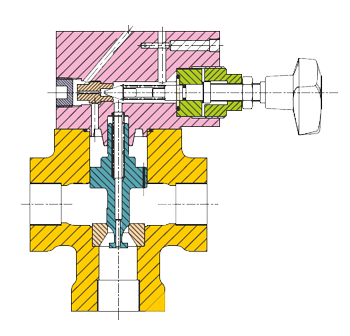

All valves are of Microtact Balanced Piston Type construction. These valves are generally used for applications requiring a electricity controlled adjustable pressure relief or regulating valve to limit the pressure in an oil circuit to the desired maximum

Basic Characteristics
Operating Pressure (maximum) 210 bar (3000 psi)
Rated Capacity (maximum)
PCV12-06 75 L/min
PCV12-10 190 L/min
Pressure Range
YD 125 - 1000 psi
DI 500 - 2000 psi
RD 1500 - 3000 psi
Nominal Valve Size
06 3/4”
10 1-1/4”
