Industrial Hydraulic - Flow Control Valves

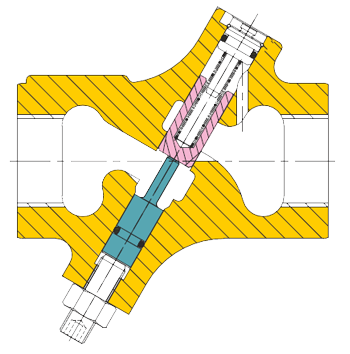

Non-Compensated Flow Regulator With Reverse Free Flow FC4
General Description
These regulators are ideally suited for a great number of applications requiring flow regulation without pressure compensation. Applications where the relatively constant nature of the load minimize the need for pressure compensation. It is not intended as a shutoff valve. To obtain the accurate control required for machine tool feeds and similar applications, pressure and temperature compensation is essential. In such cases, consult your nearest Microtact representative.
| Basic Characteristics | |
|---|---|
| Operating Pressure (maximum) | 210 bar (3000 psi) |
| Rated Capacity | |
| FC4 - 03/06 | 38 L/min |
| FC4 - 10 | 190 L/min |
| Nominal Valve Size | |
| 03 | 3/8” BSP |
| 06 | 3/4” BSP |
| 10 | 1-1/4” BSP |
| 20S | 10-1-5/8" SAE ST. Thd |
